Lake Magdalene Plumbing & Electrical Services

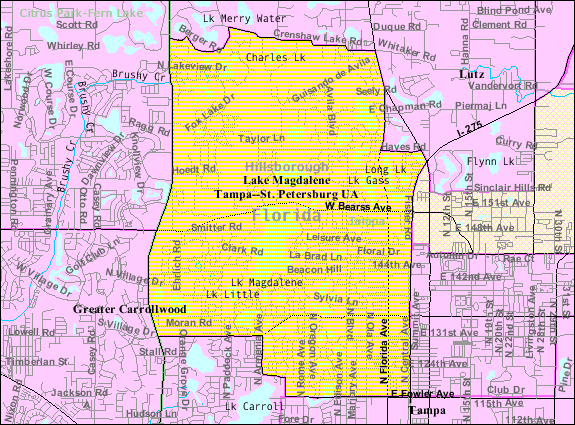

Lake Magdalene is a cluster of subdivisions wrapped around the lake and stretching north to Bearss Avenue, west to Dale Mabry, and east to N Florida Avenue. Each neighborhood has its own build window and its own predictable issues.

Lake Magdalene's housing is dominated by three eras: 1960s–early 1970s (Forest Hills, original Carrollwood edge), late 1970s–1980s (Lake Magdalene Estates, Manors, Carrollwood Springs, Whispering Oaks), and 1980s–1990s (North Lakes, Bearss corridor infill). The 1960s and early 1970s homes are the Federal Pacific / Zinsco / aluminum branch wiring vintage. The late 1970s and 1980s homes are the polybutylene / Challenger / CPVC vintage. The 1990s homes brought CPVC supply and Cutler-Hammer panels.

The good news for Lake Magdalene homeowners: this area sits at a higher elevation than coastal Tampa or South Tampa. Flood zone exposure is much lower. Most of Lake Magdalene proper is in Zone X. That means we're not fighting flood-elevated electrical equipment requirements on remodels the way we are in South Tampa or Apollo Beach. The bad news: the area was built out fast in the late 1970s and 1980s with builder-grade materials that are now hitting end-of-life all at once.

Hillsborough County is the AHJ for all unincorporated Lake Magdalene. Permits run through Hillsborough County Development Services. Many of the 1970s–1980s subdivisions have HOAs but most are light on architectural review compared to master-planned communities like Tampa Palms or Bloomingdale. Generators, EV chargers, and panel relocations usually go through with minimal HOA friction.

The lake itself drives some unique work: lakefront docks, irrigation pulled directly from the lake (with required backflow), and shoreline electrical for boat lifts on the larger lakefront homes around Lake Magdalene Estates.

If your Lake Magdalene home was originally built between 1965 and 1990 and still has the original panel, there is a strong chance it's a Federal Pacific Stab-Lok, a Zinsco, a Pushmatic, or a late-1980s Challenger. We see one or more of these on roughly every third Lake Magdalene service call on an original-panel home. FPE Stab-Lok breakers fail to trip on overload at well-documented rates. Independent testing puts the failure rate above 50% on certain models. Zinsco bus bars corrode at the breaker-to-bus contact, leading to arcing inside the panel. Challenger panels from the late 1980s have a documented overheating issue at the bus on certain models.

Florida insurance carriers. Citizens, Frontline, Tower Hill, Heritage. Have actively been non-renewing or excluding coverage on homes with these panels. A Lake Magdalene home you bought in 1992 and have never updated is a real candidate for non-renewal at next inspection.

Our standard replacement is a 200-amp Square D QO or Eaton CH main breaker panel, with a Type 2 whole-home surge protector at the panel and combination AFCI/GFCI breakers per current NEC. We pull the permit through Hillsborough County, coordinate the TECO disconnect/reconnect, and bring the grounding electrode system up to current code. A like-for-like 200A swap typically runs $2,400–$3,800 with permit; service upgrades from 100A or 150A to 200A add roughly $700–$1,400.

Roughly 1965–1975 Lake Magdalene homes (Forest Hills, original Carrollwood edge, oldest sections of Lake Magdalene Estates) were often wired with solid aluminum 12 AWG branch circuits. Aluminum at terminations expands, contracts, and oxidizes, leading to loose, hot connections at receptacles and switches. Symptoms: warm receptacle plates, intermittent outlets, flickering at switches, hot-plastic smell.

Proper remediation is COPALUM crimps. Copper pigtails crimped to aluminum with the AMP COPALUM tool by a certified installer. We do not recommend wire-nut-with-paste retrofits; insurance carriers don't accept them. A full COPALUM remediation on a 1968 Forest Hills 3-bedroom typically runs $1,800–$3,200 depending on receptacle and switch count.

Many Lake Magdalene homes built between 1978 and 1995. Most of Lake Magdalene Manors, sections of North Lakes, parts of Whispering Oaks, and many of the area condos. Were piped in polybutylene. Polybutylene degrades from chlorine in the municipal supply; the acetal fittings fail first, the pipe wall later. Insurance carriers across Florida have started excluding water-damage coverage on poly homes, and resale contracts increasingly carry polybutylene contingencies.

Our standard Lake Magdalene repipe is full-house in PEX-A (Uponor) with expansion fittings, re-routed through attic spaces and wall cavities to minimize wall damage. A typical 3-bath single-story home repipes in 2 to 3 days with 8–14 small drywall openings. We pull the permit through Hillsborough County, pressure-test at 100 psi for 24 hours, and call for rough and final inspection. Free polybutylene identification. Text us a photo of the pipe at the water heater.

Lake Magdalene homes built before the mid-1970s were typically drained in cast iron inside, with clay or Orangeburg laterals to the county sewer. Cast iron in our climate corrodes through from the inside in roughly 50 to 75 years; the original 1960s and early 1970s lines in Forest Hills are now in or past that window.

Every Lake Magdalene sewer call starts with a camera. For partial failures with sound geometry we offer trenchless cured-in-place pipe (CIPP) lining. A real value in mature Lake Magdalene yards with established landscaping. Where the line is collapsed, severely bellied, or undersized we excavate and replace in PVC SDR-26 with proper bedding per Florida Building Code §708.

Inside the home, full cast iron stack and branch replacement runs roughly 4–6 days for a 2-bath ranch. We pull the permit through Hillsborough County and stage rough-in and final inspections.

Mature oak and live oak canopies across Forest Hills, Lake Magdalene Estates, and the older Carrollwood sections drop massive leaf loads and grow root systems that find every joint in a sewer line. We cable for routine clogs, hydro-jet at 3,500–4,000 psi for serious root and grease intrusion, and camera before recommending replacement. On older cast iron we dial pressure carefully. Full pressure on a 50-year-old corroded line can crack it.

We install Rheem, Bradford White, A.O. Smith, Rinnai, Navien, and Noritz units in tank, tankless, and hybrid heat-pump configurations. Most Lake Magdalene homes have the heater in the garage on the gable wall. Straightforward access. Closed systems (most Lake Magdalene homes are closed because of the meter check valve) require a code-compliant expansion tank. Garage installs require a drip pan with drain and proper combustion-air provision for atmospheric gas units.

Tankless gas conversions in Lake Magdalene typically need a 3/4-inch gas line upgrade. The original 1/2-inch line that fed an atmospheric tank water heater isn't enough for a 199,000 BTU tankless. We are licensed for medium-pressure gas and pull the gas permit alongside the plumbing permit.

For Lake Magdalene condos, we pay close attention to the unit's drain pan and overflow routing. Failed water heaters in stacked condos cause cascading damage to units below, and HOA bylaws often require a drip pan with a sensor-actuated leak shut-off valve.

Lake Magdalene loses power during named storms and during summer thunderstorms when limbs come down on overhead distribution lines. A whole-home Generac, Kohler, or Briggs & Stratton standby unit on natural gas (TECO Peoples Gas serves most of the area) or propane keeps the home running.

Setbacks: 5 feet from any door, window, or fresh-air intake; 18 inches from the structure on the long side; concrete or composite pad. Lake Magdalene HOAs are generally light on architectural review for generators, but lakefront properties may have shoreline setbacks that affect placement on the lake side.

Sizing: a 22kW air-cooled unit handles most 2,200 sq ft Lake Magdalene homes. Larger lakefront homes with three AC compressors and pool/dock loads may need 26kW or liquid-cooled.

We install Tesla Wall Connectors, ChargePoint Home Flex, Wallbox, JuiceBox, and hardwired NEMA 14-50 receptacles. Most Lake Magdalene 1970s and 1980s homes were originally built with 100A service. That's tight for an EV charger plus a modern AC, electric range, and pool pump. We either upgrade to 200A (often combined with a Federal Pacific or Zinsco panel replacement) or install a smart load-management device. We do the load calc on-site.

Lakefront homes around Lake Magdalene proper need NEC Article 555-compliant dock electrical. Ground-fault protection at 30 mA, equipotential bonding, and corrosion-resistant conductors. Boat lift motors, dock lighting, and lake-side outlets all require GFCI protection and weatherproof enclosures rated for lakeside conditions. We are equipped to permit and inspect dock electrical with Hillsborough County.

Lakefront irrigation pulled from the lake itself requires a backflow preventer at the connection to the potable supply. We test annually and file with the county.

Hillsborough County Public Utilities serves most of Lake Magdalene at static pressures of 65–80 psi at the curb. Florida code requires a PRV above 80 psi; even at 70–80 we recommend one to extend fixture and water heater life. We install Watts and Wilkins units and verify on a gauge.

Lake Magdalene irrigation backflow assemblies require annual testing. We are state-certified testers and file directly with the county. Municipal hardness in this area runs 7–10 grains per gallon. A softener is worth installing for fixture, glass, and water heater longevity. We install Fleck and Clack systems sized to household demand.

All unincorporated Lake Magdalene permits run through Hillsborough County Development Services. Plumbing, electrical, gas, mechanical. HOA review varies: Lake Magdalene Estates and the larger subdivisions have ARC requirements for visible exterior changes (generator pads, EV chargers visible from street, mini-split condensers on visible elevations). The condo associations have stricter unit-level requirements, including water heater leak detection and shut-off valves.

Code references we apply daily: Florida Building Code §606, §607, §708; NEC 230, 250, 310, 408, 555 (lakefront), 625 (EV); Florida-specific hurricane wind-load amendments for exterior equipment; Hillsborough County local amendments on backflow.

Burst supply, sewer backup, no power, no hot water. Lake Magdalene emergencies don't wait. Typical response 30–90 minutes during business hours; Mon–Sat dispatch with confirmed ETA at time of call. Trucks carry water heaters, expansion tanks, GFCI/AFCI breakers, panel feeders, and common breakers. Most emergencies resolve in one visit.

Lake Magdalene is central to North Tampa. Adjacent areas we serve:

How do I tell if I have a Federal Pacific panel? FPE Stab-Lok panels usually have a red strip on the breaker handles and 'Federal Pacific' or 'FPE' labeling on the cover. Send us a photo and we'll confirm in 30 seconds.

Is my Lake Magdalene home in a flood zone? Most of Lake Magdalene proper is in Zone X. Outside the regulatory floodplain. Some lake-adjacent and creek-adjacent properties are in AE. Check the FEMA flood map for your specific address.

How much does a panel upgrade cost in Lake Magdalene? A like-for-like 200A swap typically runs $2,400–$3,800 with permit; FPE/Zinsco replacements that need code-compliant supplemental grounding can run higher. We quote on-site.

Do you handle condo water heater replacements? Yes. Including the leak-detection shut-off valve and drip pan with overflow drain that most associations require.

How fast can you respond to a Lake Magdalene emergency? Same-day, typical 30–90 minutes during business hours. After-hours dispatch Mon–Sat with confirmed ETA at call.
